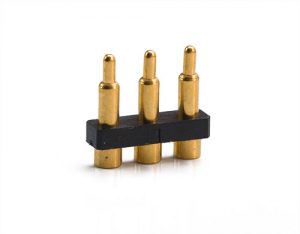

YLW 电性能 PGOPIN 弹簧针顶针

YLW工作电压 Voltage:  36VDC Max.  or 150 VDC/100 VRMS

YLW 额定电流测试（Temperature Rise VS Current Rating)           30°C Max.

YLW绝缘电阻Insulation Resistance                  1000 M ohm Min. at 500 VDC

YLW耐压Dielectric Withstanding Voltage            500VAC  1 minute between adjacent contact

YLW电容 Capacitance between two adjacent contacts        1 pF Max.

永连旺电子弹簧针环境性能 ENVIRONMENTAL CHARACTERISTICS

工作温度范围Operating Temp.               -40°C to 85 °C

储存温度范围Storage Temp.                   -40°C to 85 °C

可焊性Solderability                                solder coverage area Min.95%

盐雾腐蚀试验Salt Spray Corrosion         48-96 Hours

耐焊锡热Resistance to Solder heat        2 Cycles Reflow@ Peak 260 °C  20S

高湿测试（Humidity）                            96 hours @ 93% R.H.   40 °C

高温测试（Temperature Life）               105°C  96hrs

环境保护ENVIRONMENT PROTECTION

    符合RoHS要求   Conformed to RoHS directive

符合REACH要求 Conformed to REACH

永连旺电子包装 PACKAGING

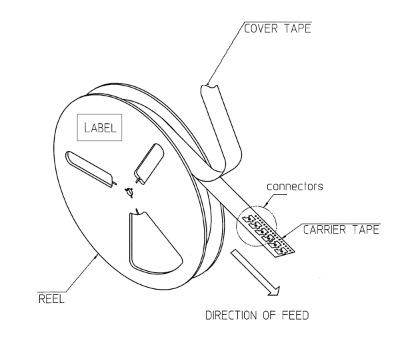

Tape & Reel packaging acc. To EIA 481 standard

YLW对潮湿敏感MSL2 和MSL3 级连接器进行防潮包装。不选用MSL4及以上塑胶材料。
